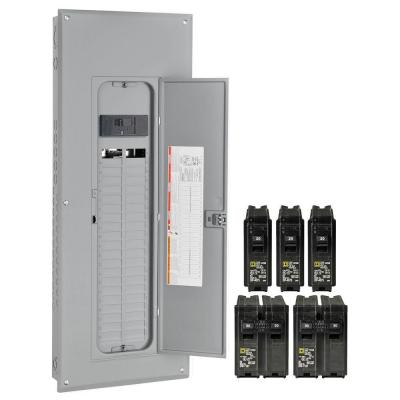

The Square D Homeline 200 Amp 40-Space 40-Circuit Indoor Convertible Main Breaker Load Center with Cover Value Pack is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

• Includes (3) HOM120 Homeline 20 Amp Single-Pole Circuit Breakers, (2) HOM230 Homeline 30 Amp Double-Pole Circuit Breakers, and a combination flush/surface indoor cover
• Accommodates plug-on secondary surge arrestor (sold separately)
• Overhead/underground feed simply by rotating the device before installing
• Single phase
• Rated 120/240 VAC and 22,000 AIR short circuit current rating
• The automatic flush adjusting cover requires less time to complete the job.
• Designed with straight-In mains to save expensive cable and time
• Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
• Thermoplastic interior assembly is among the most rugged in the industry
• Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
• For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
• Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
• Model No. : HOM40M200VP

• UPC No. : 785901831693
• Assembled Height (in.)  39.37 in

• Assembled Depth (in.)  3.75 in

• Assembled Width (in.)  14.25 in
• Product Weight (lb.)  40.11
