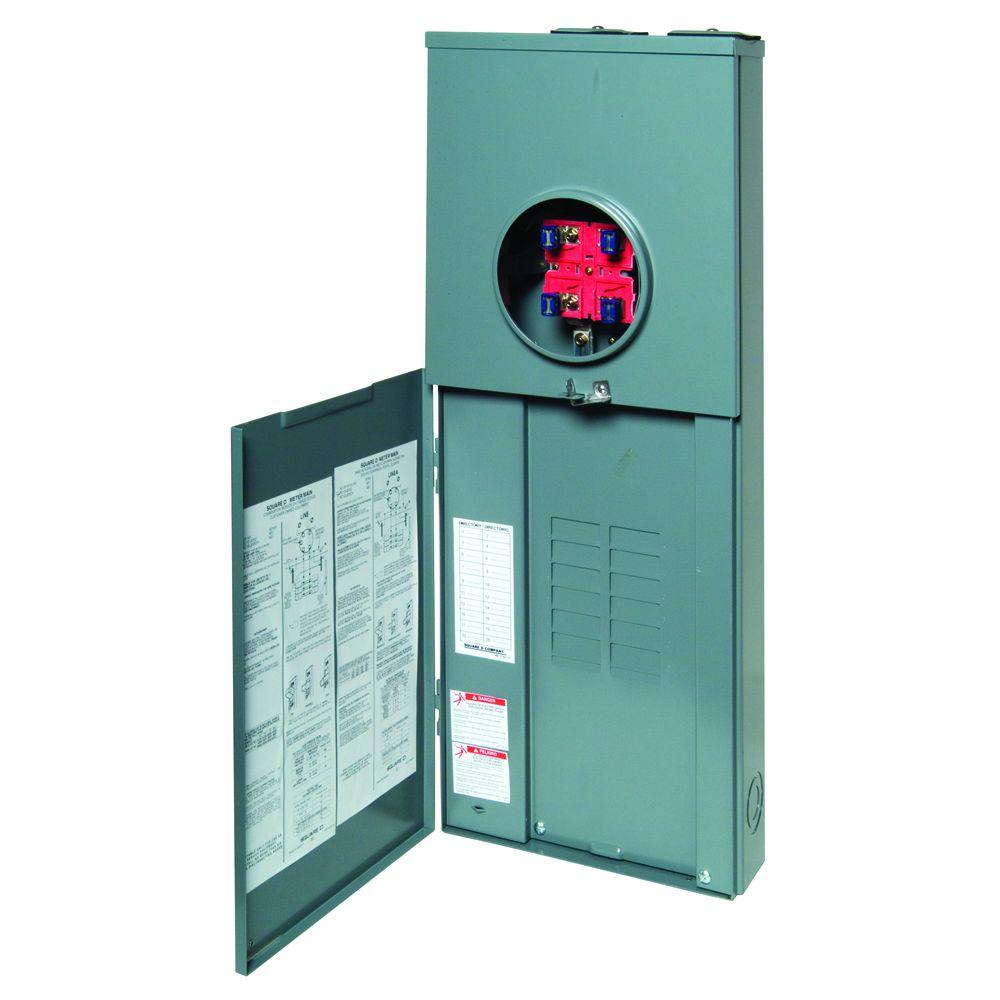

The Square D by Schneider Electric 200 Amp 12-Space 12-Circuit Combination Meter Socket and Main Lug Load Center is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum SCCR of 10,000. The ring less unit is intended for use as a combination meter socket and main lug load center in overhead or underground service applications.

• Homeline 200 Amp 12-space 12-circuit ringless overhead/underground main lugs CSED
• Combination service entrance device, 200 Amp, single phase, ring less type, Homeline interior. 12 spaces using Homeline circuit breakers, overhead/underground feed with type 'A' size hub provisions in top end wall and 2.5 in. knock-out
• CSED Ring less type meter main: Surface mount
• 200 Amp
• 12 spaces/12 circuits max
• Combination overhead/underground service
• Lug (main breaker field installed)
• Surface mount convertible to semi flush with flange kit
• Surface mount
• Surface mount can be converted to a semi-flush mount with a flange kit flange kit not included
• 12 spaces using Homeline circuit breakers with a 12 circuit maximum breakers not included
• ANSI certified and UL listed
• Convertible to a main breaker load center with the installation of a main breaker (sold separately)
• Model No.: RC12L200C
• UPC No. : 785901863984
• Assembled Height (in.)  36.5 in
• Assembled Depth (in.)  14.90 in

• Assembled Width (in.)  5.7 in

• Product Weight (lb.)  40.58
