The Square D Homeline 200 Amp 40-Space 40-Circuit Indoor Convertible Main Breaker Load Center with Cover Value Pack is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

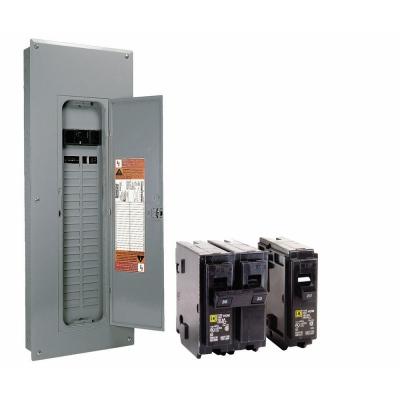

- Includes (3) HOM120 Homeline 20 Amp Single-Pole Circuit Breakers, (2) HOM230 Homeline 30 Amp Double-Pole Circuit Breakers, and a combination flush/surface indoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 AIR short circuit current rating

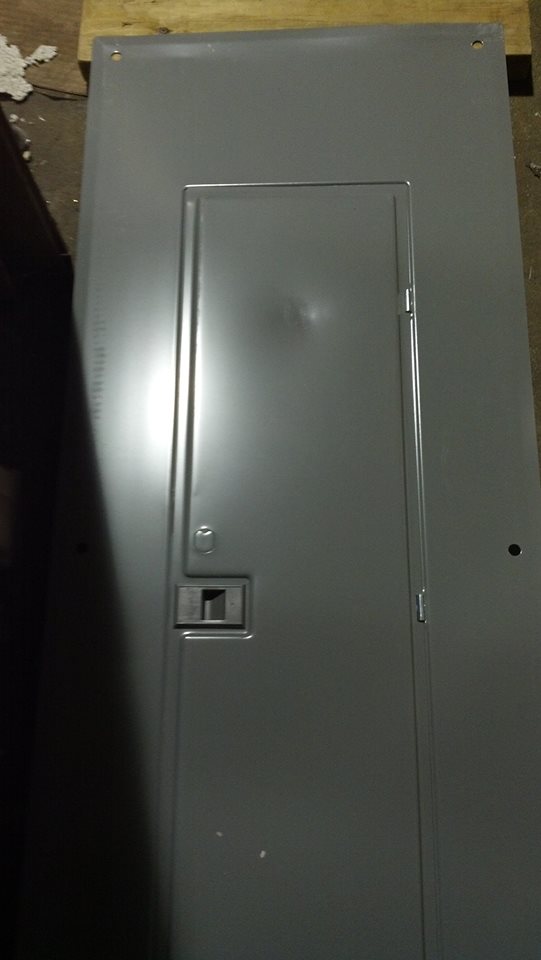

- The automatic flush adjusting cover requires less time to complete the job.
- Designed with straight-In mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Model No. : HOM40M200VP
- UPC No. : 785901831693
- Assembled Height (in.)
39.37 in
- Assembled Depth (in.)
3.75 in
- Assembled Width (in.) 14.25 in
- Product Weight (lb.) 40.11
